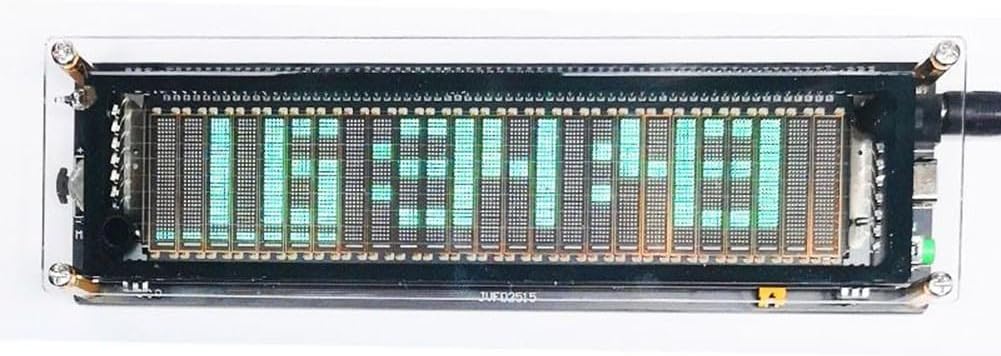

16-Segment Audio LED Display Kit, DIY Music Visualizer with Adjustable Brightness, 5V USB Powered for Home Audio Systems and PC Setups(A)

detail:Tip: This is a loose part and needs to be assembled- For the and usage instructions of the for Spectrum, please see the following function video, no instructions! - 16-segment audio for Spectrum display PCB size 176*50mm, LED size 167*41mm. - The thicknesfor of the flattened PCB board is 14mm, the thicknessfor of the LED module is 8mm, and the total thicknessfor is 22mm.Size: narrow screen 150*34mm, wide screen 160*40mmimportant:1. The module is green, the power supply is DC 5V/600MA, the maximum brightness of the whole board does not exceed 600MA, and the USB power supply with an output current greater than 600MA can be used.2. The "BG" printed on the module is green, and the printed pins are + pole, corresponding to the "+" on the board.3. Equipped with 33 green modules, more for spare.4. Pay special attention to the color and polarity of the LED module when welding. Be sure to remember the row of pins, the LED module corresponding to the electrode position, and the LED module position to be soldered last.feature:*Display flip function, 16-level brightness adjustment. *The for Spectrum of main landing speed, peak hold time and descent speed can be adjusted individually.*With smooth display and bottomless display mode, excellent AGC processing. Make the signal display richer.*Using a professional constant current driver chip with blanking, the LED light has no problem of light and dark flickering.Package Included:1PC*LED Audio for Spectrum DIY Kit

• 【VFD Sound Level Meter】This DIY kit includes a VFD sound level meter with a 16-segment audio display. The PCB size is 176*50mm, and the LED size is 167*41mm. The thicknesfor of the flattened PCB board is 14mm, the thicknessfor of the LED module is 8mm, and the total thicknessfor is 22mm.
• 【High Brightness and Flip Display】The analyzer features a display flip function and 16-level brightness adjustment. It delivers smooth and bottomless display modes, providing excellent AGC processing for a richer signal display.
• 【Adjustable Parameters】The main landing speed, peak hold time, and descent speed of the can be individually adjusted to meet your specific needs. This allows for a customizable and precise sound level analysis.
• 【Stable LED Performance】With a professional constant current driver chip, the LED light does not flicker or have issues with light and dark fluctuation. It ensures stable and reliable performance for accurate sound level readings.
• 【Easy Assembly】The DIY kit comes with all the necessary components for assembly. Simply follow the instructions and soldering guidelines. Size options include narrow screen (150*34mm) and wide screen (160*40mm).
