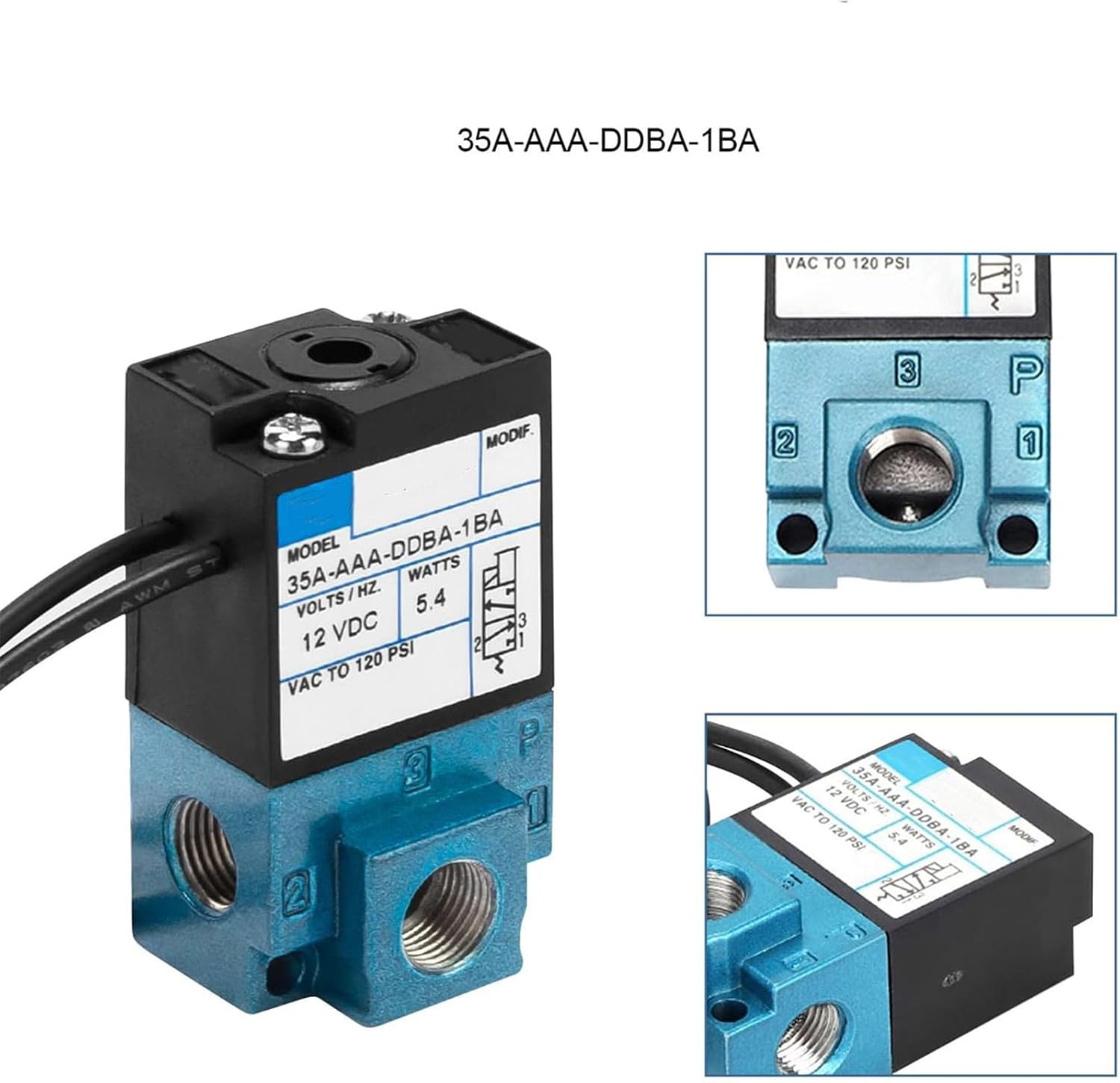

Electronic Boost Control High-Frequency Solenoid Valve 3-Port Boost Controller with Brass Pneumatic Connector and Silencer for DC12V 5.4W 35A-AAA-DDBA-1BA

Product Parameters: Product Name: High Frequency Electromagnetic Valve Model: DDBA Pressure range; Vacuum~8bar (vacuum~120psi) Traffic (Cv value): 5.4W: Cv0.15 Material: Carbon Steel Mode of action: Direct actin Temperature environment: -18 ° C~50 ° C Flow direction: Unidirectional Drive mode: electric Product size: 50 * 27 * 23MM Product packaging: 1x solenoid valve controller 2x brass pneumatic connector 1x pagoda head (muffler)

• The 35A-AAA-DDBA-1BA solenoid valve is driven by pulse width modulation (PWM), DC12V 5.4W， Using a 25.4 ohm coil, the maximum vacuum degree can reach 120 PSI.
• Balanced valve design, reaction time not affected by pressure changes; The valve core is designed with anti jamming protection to prevent the wire coil from burning out;
• Precision machining, fine and smooth threads without defects, with stable and sealed characteristics, not easy to leak air
• Medium carbon steel body, good wear resistance, medium carbon steel material hardness is harder than ordinary aluminum alloy, strong impact resistance
• Sufficient coils, copper coils are not easily scalded and are not easily burned out after long-term use At the same time, the electric coil is isolated from the air to increase the lifespan of the coil;
• Suitable for most aftermarket ECU applications, most turbocharging and mechanical supercharging applications. Compatible with replacement parts for boost control solenoid valves from many brands such as Turbosmart, Cobb Tuning, AEM, Autronic, Haltech, Grimmspeed, etc.
